产品中心
PRODUCTS
|
型号（量程）
Model(Range)
|
|
特点描述
Character
|
中文说明书
Chinese datasheet
|
英文说明书
English datasheet
|
备注
Remark
|
|---|---|---|---|---|---|
|
扩散硅芯体
MEMS oil filled capsule
|
|||||
|
A11 10kPa...7MPa |
|
● ∅19mm 充油芯体/ Oil filled capsule ● 输出/output: 100mV(typical) ● 补偿温度/Comp. temp.: 10kPa(0-50℃); 其他/others(-10~70℃) |
A11-中文说明书.pdf |
A11-English.pdf |
哈式合金膜片和焊环可选/ Hastelloy material is avaliable
|
|
A16-200B 70…700Bar |
|
● ∅19mm 充油芯体/High range capsule ● 输出/output: 180mV (200Bar) ● 压力范围宽/wide range：7MPa…70MPa ● 补偿温度/Comp. temp:-10~70℃ |
A16-中文说明书.pdf |
A16-English.pdf |
|
|
A15/A17 100kPa...7MPa |
|
● ∅12.6mm 膜片/diaphragm（weldable） ● 输出/output: 100mV(typical) ● 补偿温度/Comp. temp.: 100kPa(0-70℃); 其他/others（-10~70℃） |
A15&A17-中文说明书.pdf |
A15&A17-English.pdf |
A17是焊接了螺丝头的产品/A17 is sensor with fitting
|
|

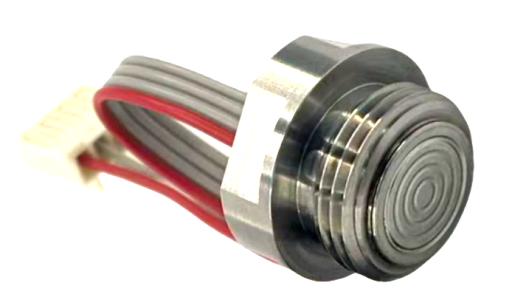

A13/A23 20kPa...7MPa |
|
● 焊接型平膜芯体 Flush diaphragm with fitting ● 输出/Output: 100mV(typical) ● 补偿温度/Comp. temp.: ≤100kPa(0-50℃); 其他/Others:-10~70℃ |
A13&A23-中文说明书.pdf |
A13&A23-English.pdf |
A13是经济型（假平膜）/Low cost with weld ring
A23是纯平膜/without weld ring |
|
A28 10kPa...2.5MPa |
|
● 2寸卡箍平膜芯体(纯平膜） 2" Flush monuted sensor ● 输出/output: 100mV(typical) ● 补偿温度/Comp. temp: 10kPa(0-50℃); 其他/others(-10~70℃) |
A28-中文说明书.pdf |
A28-English.pdf |
|
|
A31 20kPa..7MPa |
|
● ∅19mm 温压一体充油芯体 Pressure(oil filled)+Temp(PT100) sensor ● 压力输出/Pressure output: 100mV(typical) ● 温度输出/Temp output：PT100（2 wires） |
A31-中文说明书.pdf |
A31-English.pdf |
哈式合金膜片可选/Hastelloy diaphragm
is avaliable |
|
D11 7kPa…35MPa |
|
● ∅19mm 充油芯体/oil filled Capsule ● I²C/SPI ● 补偿温度/Comp.temp ≤10kPa(0-50℃); 其他others(-10~70℃） |
D11-中文说明书.pdf |
D11-English.pdf |
哈式合金膜片可选/Hastelloy diaphragm
is avaliable |
|
E10 7kPa…7MPa |
|
● ∅19mm 充油芯体（变送器输出） Oil filled (Transducer capsule) ● 输出/Output:4-20mA;0.5-4.5V;0-5V;1-5V ● 补偿温度/Comp.temp: ≤10kPa(0-50℃); 其他others(-10~70℃） ● 抗电磁干扰能力强/ Robust EMC protection |
E10-中文说明书.pdf |
E10-English.pdf |
哈式合金膜片可选/Hastelloy diaphragm
is avaliable |
|
玻璃微熔传感器
Microfused pressure sensors
|
|||||
|
M1 3.5...100MPa |
|
● 输出/Output：100mV(typical) ● 补偿温度/Comp temp.:-10~70℃ ● 螺纹一体焊接，无密封圈 Welded structure, w/o O-ring ● 高爆破压力/ High burst pressure |
M1-中文说明书.pdf |
M1-English.pdf |
|
|
无隔离膜片的扩散硅芯体
MEMS pressure sensors(w/o isolated diaphragm)
|
|||||
|
A51 10kPa…2.5MPa |
|
● 输出/Output：100mV(typical) ● 补偿温度/Comp temp.:-10~70℃ ● 可测试无腐蚀性液体 Compatible with non-aggressive liquid ● 低成本/low cost |
A51-中文说明书.pdf |
相关寿命测试和介质兼容性测试已上传到网站资料栏/Life test and media compatible tests are available at infor.column
|
|
|
扩散硅充油变送器
MEMS oil filled transducers
|
|||||
|

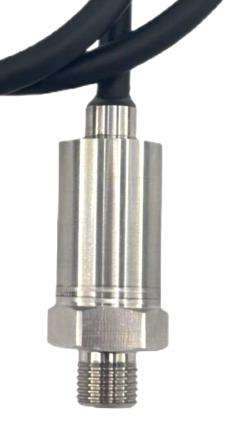

P50 7kPa…7MPa |
|
● 全焊接结构,无密封圈 All welded structure,w/o o-ring ● 补偿温度/Comp.temp:-20~85℃(>100kPa) ● 抗电磁干扰能力强/ Robust EMC protection ● 输出/output：4-20mA;0.5-4.5V;0-5V;1-5V;0-10V ● 与介质接触部分材质/Wetted material:SS 316L |
P50-中文说明书.pdf |
P50-English.pdf |
|
|
D50 7kPa…7MPa |
|
与P50相似，除了输出是I²C Similaer with P50,Except the output is I²C |
D50-中文说明书.pdf |
D50-English.pdf |
|
|

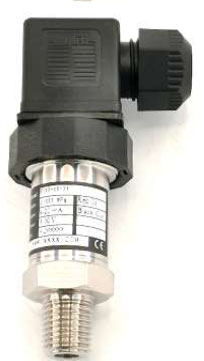

P10 10kPa…7MPa |
|
● 全焊接结构,无密封圈 All welded structure,w/o o-ring ● 塑胶外壳，低成本/Plastic case,low cost ● 多种输出/Various outputs： 0-100mV;4-20mA;0.5-4.5V etc. ● 与介质接触部分材质/Wetted material:SS 316L |
P10-中文说明书.pdf |
P10-English.pdf |
线缆长度和接头可按客户要求定制/ Cable length and connector could be changed as request
|
|

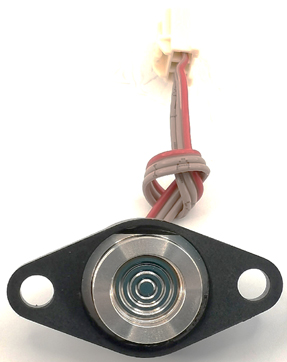

A80 200kPa..1.6MPa |
|
● 小尺寸，高精度/Small profile,High precision ● 塑胶外壳，低成本/Plastic case,low cost ● 输出/output：0.5-4.5V ● 与介质接触部分材质/Wetted material:SS 316L |
A80-中文说明书.pdf |
A80 English.pdf |
线缆长度和接头可按客户要求定制/ Cable length and connector could be changed as request
|
|
玻璃微熔变送器
Microfused Transducers
|
|||||
|
P60 3.5...100MPa |
|
● 全焊接结构,无密封圈 All welded structure,w/o o-ring ● 补偿温度/Comp.temp:-20~85℃(≤35MPa) ● 抗电磁干扰能力强/ Robust EMC protection ● 输出/output：4-20mA;0.5-4.5V;0-5V;1-5V;0-10V ● 高爆破压力/ High burst pressure |
P60-中文说明书.pdf |
P60-English.pdf |
|
|
D60 3.5…35MPa |
|
与P60相似，除了输出是I²C Similaer with P60,Except the output is I²C |
D60-中文说明书.pdf |
D60-English.pdf |
|
|
P20 3.5...35MPa |
|
● 全焊接结构,高爆破压力 Robust structure,high brust pressure ● 塑料外壳，低成本/Plastic case,low cost ● 多种输出/Various outputs： 0-100mV;4-20mA;0.5-4.5V etc. |
P20-中文说明书.pdf |
P20-English.pdf |
|
